GOBI 4XX 002 – Semi Selective Solar Collectors

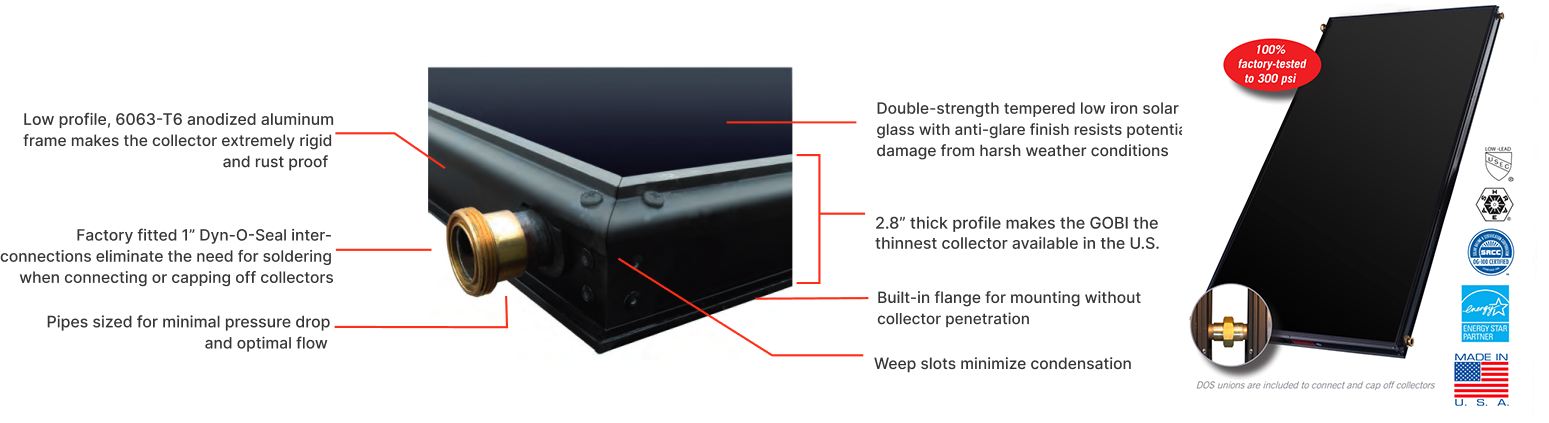

The GOBI solar collector boasts over 47 years of refinement, offering high performance and durability with its semi-selective absorber coating and black paint. Pressure tested to 300 PSI, it ensures reliability and efficiency. With a redesigned frame for improved sleekness and streamlined installation with Dyn-O-Seal (DOS) union interconnection., it ranks among the top OG-100 collectors, catering to diverse solar water heating needs.
Technical Specifications
| MODEL | Gobi 406 002 | Gobi 408 002 | Gobi 410 002 |
|---|---|---|---|
| Gross Area(sq.ft) | 26.94 | 32.33 | 40.15 |
| Net Area(sq.ft) | 24.91 | 29.83 | 38.3 |
| Dry Weight(lbs) | 74 | 102 | 127 |
| Fluid Capacity(Gallon) | 0.6 | 0.7 | 0.8 |
| Maximum Operating Pressure | 150 PSI(10.13 Bar) | ||
| Recommended Design Flow Rate(glycol/water mix)(gallons/minute) | 0.8 | 1 | 1.25 |
| Recommended Design Flow Rate(water)(gallons/minute) | 0.7 | 0.8 | 1 |
| Wind Load Certifications | 50 psf(2.39kPa) | ||
